figma MCP + cursor如何将设计稿生成前端页面

Figma MCP配置与代码生成指南本文详细介绍了如何在Cursor中配置Figma MCP（多上下文处理器）的完整流程：从获取Figma API密钥、设置MCP服务器配置，到添加代码生成规则。关键步骤包括生成Figm a个人访问令牌、配置cursor settings文件、启用MCP服务，以及设置代码规则（包含TypeScript/Vue技术栈规范、BEM命名规则等）。最后提供了将Figma设

Yriaf@2022

555人浏览 · 2025-06-06 16:05:02

Yriaf@2022 · 2025-06-06 16:05:02 发布

一、准备工作

figma MCP需要通过figma key来获取设计稿权限，key的生成步骤如下

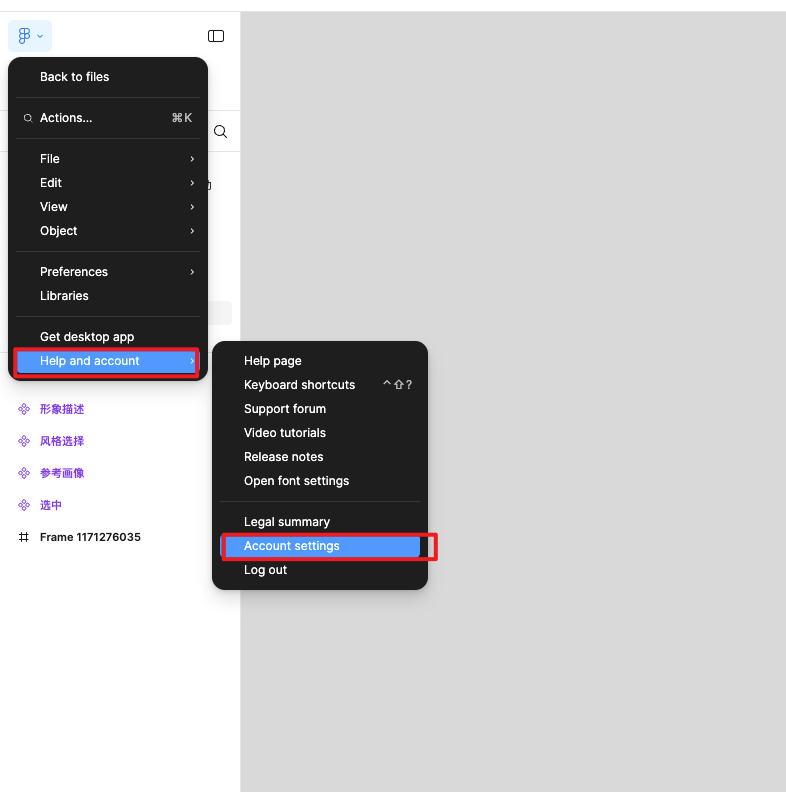

1. 打开figma网页版/APP，进入账户设定

在这里插入图片描述

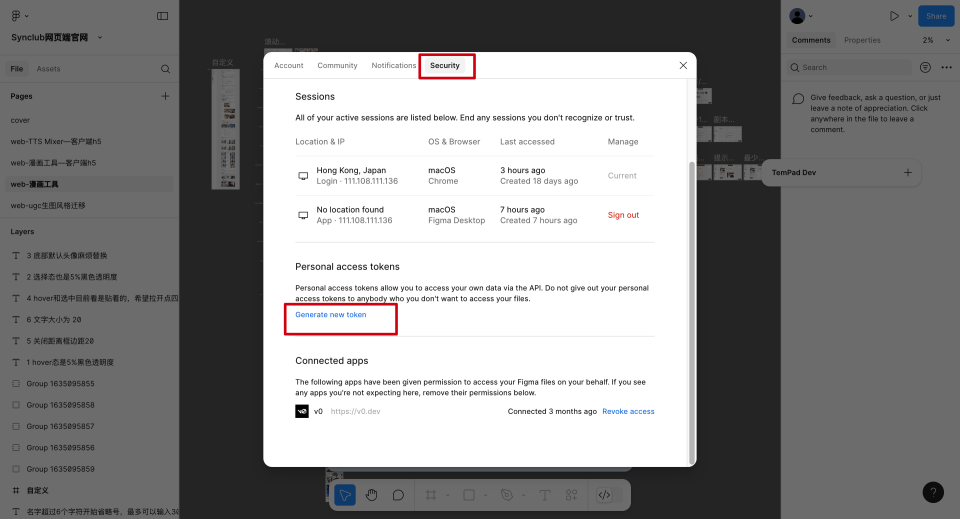

2. 点击生成token

在这里插入图片描述

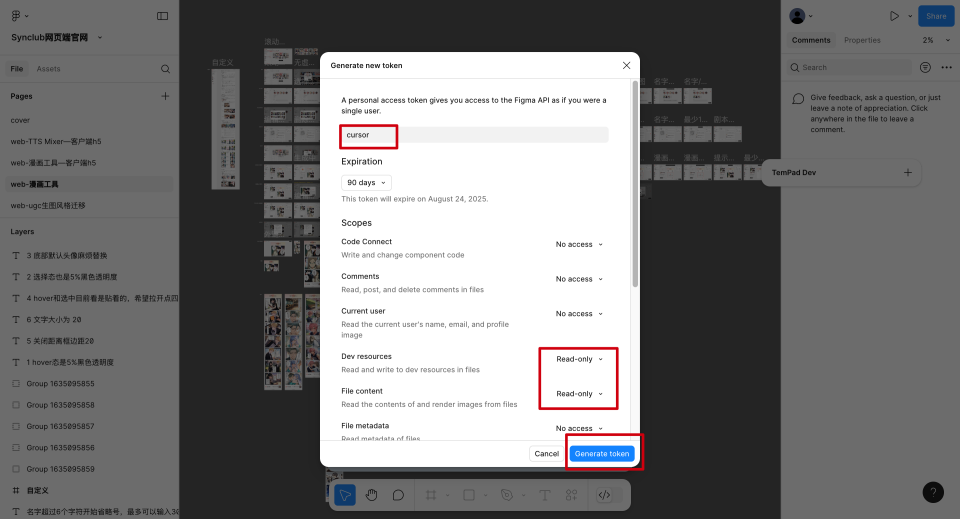

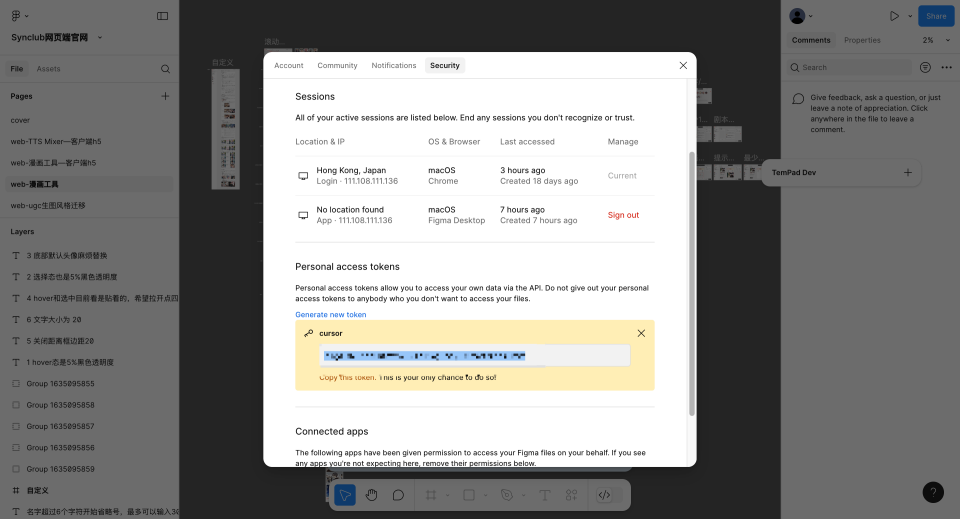

3. 填写内容生成token(一定要确认复制了，不然关闭弹窗后就不会显示了)

在这里插入图片描述

二、配置MCP

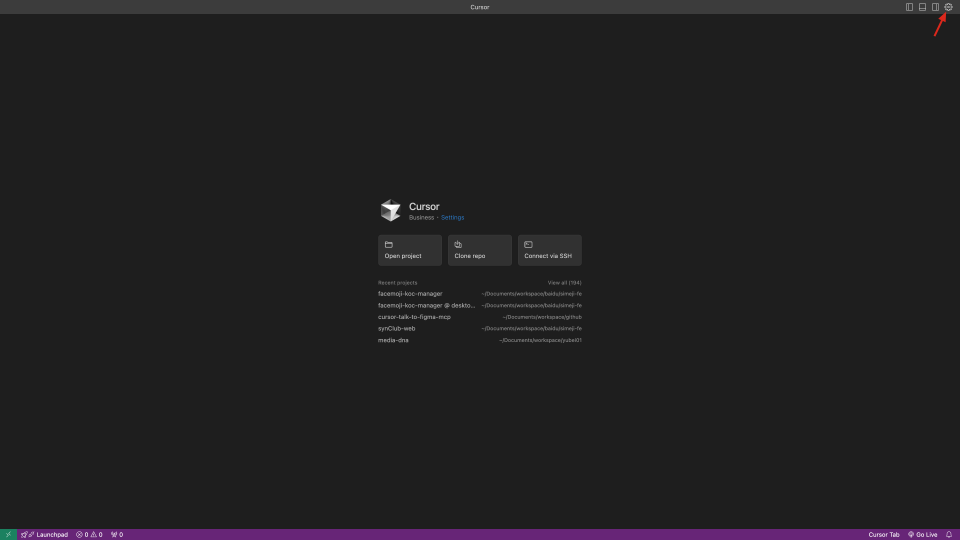

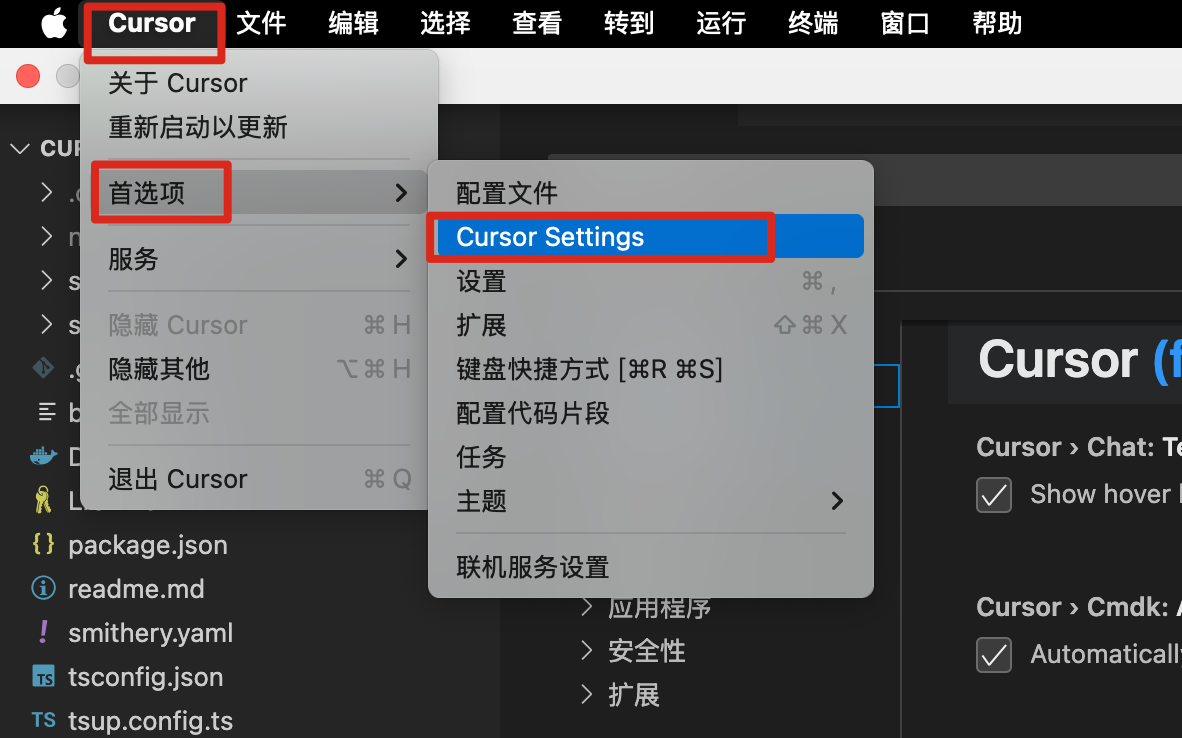

4. 进入到cursor setting

在这里插入图片描述

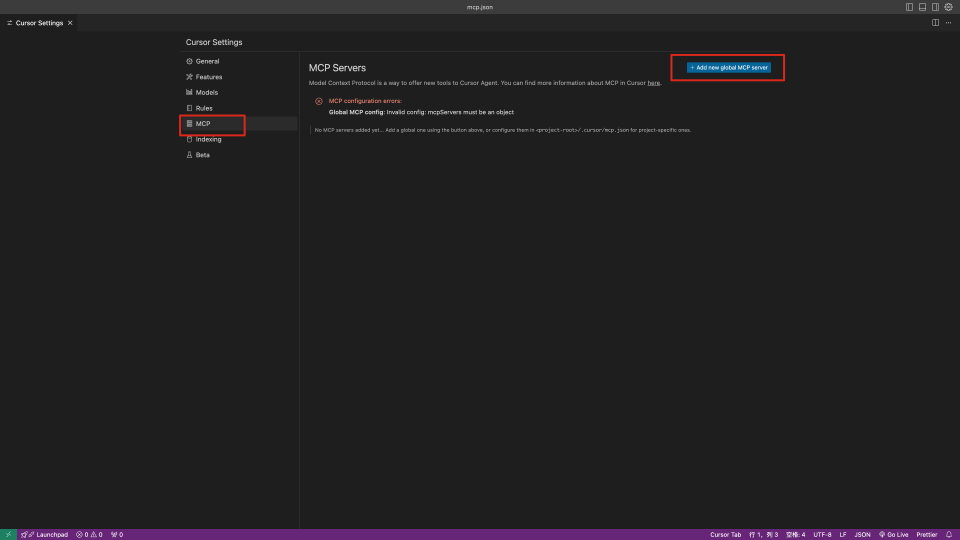

5. 点击新增按钮

在这里插入图片描述

6. 会弹出配置文件，用之前生成的figma token替换“<------your-api-key------>”部分后，填充以下内容。

{
  "mcpServers": {
    "Framelink Figma MCP": {
      "command": "npx",
      "args": [
        "-y",
        "figma-developer-mcp",
        "--figma-api-key=<------your-api-key------>", // 这里需要替换成之前生成的figma key
        "--stdio"
      ]
    },
    "eslint": {
      "command": "npx",
      "args": ["@eslint/mcp@latest"],
      "env": {}
    }
  }
}

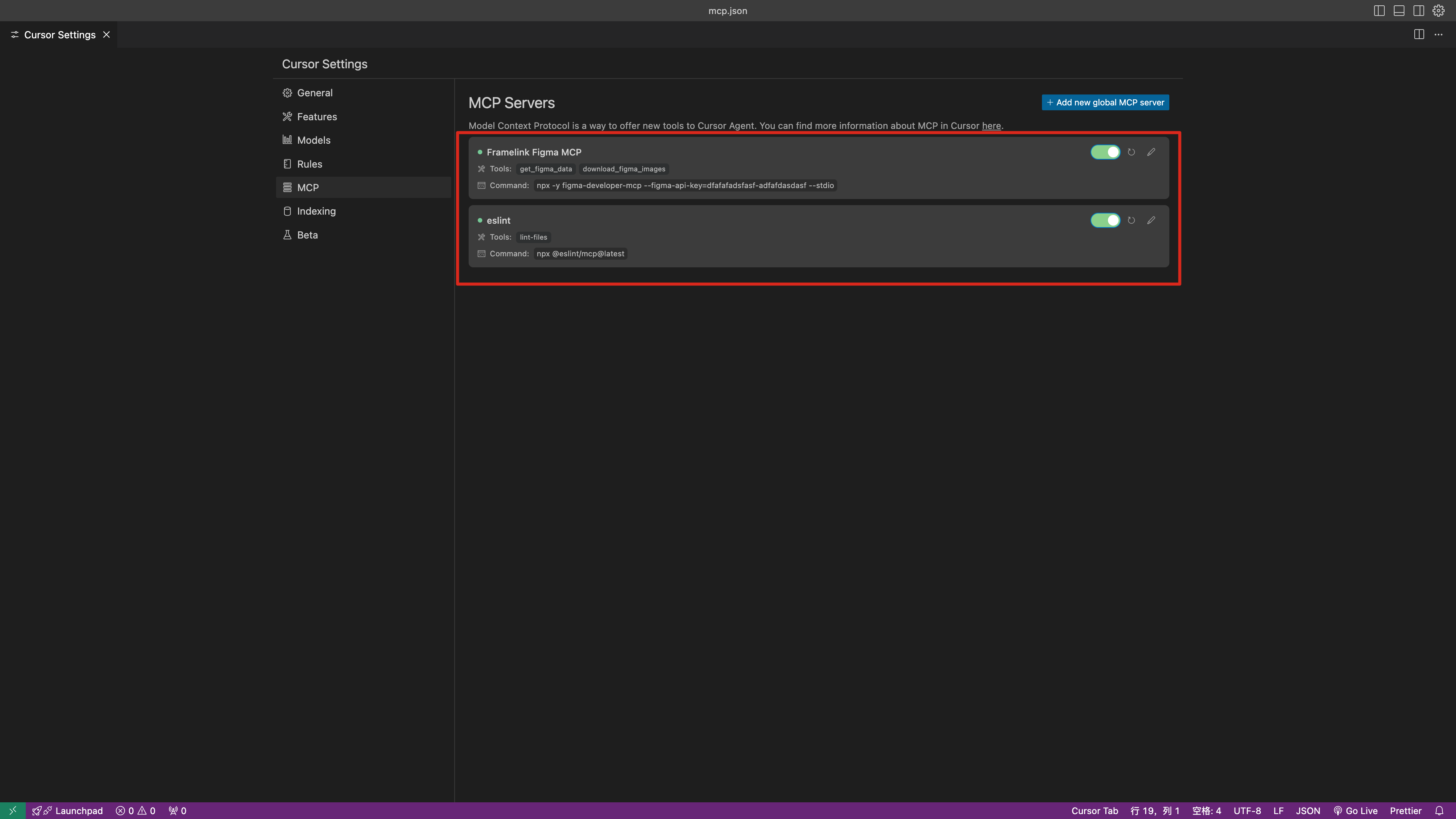

7. 配置好后，打开开关，应该会出现以下工具列表。如果没出现试试重启cursor

在这里插入图片描述

三：代码生成规则配置

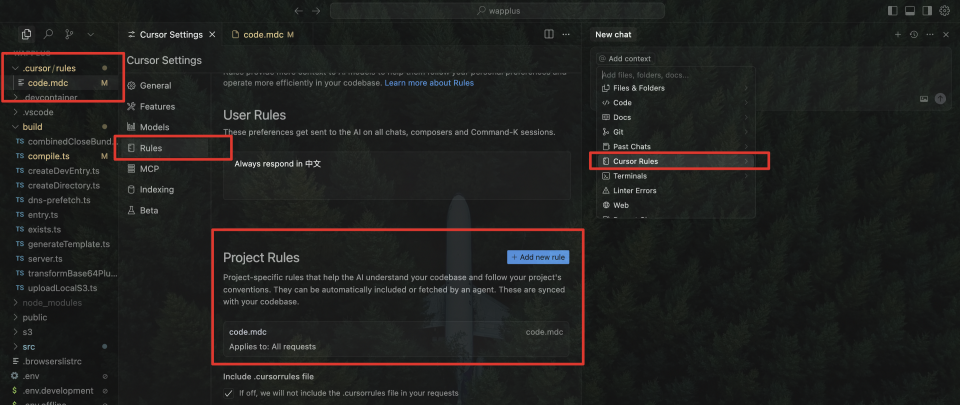

添加rules

允许你为代理和 AI 提供系统级指导。可以将它们视为一种持久的方式来编码上下文、偏好或工作流程，用于你的项目或个人


    You are an expert in TypeScript, Node.js, Vite, Vue.js, Vue Router, Pinia, VueUse, Element Plus, and Sass, with a deep understanding of best practices and performance optimization techniques in these technologies.

    Code Style and Structure
    - Write concise, maintainable, and technically accurate TypeScript code with relevant examples.
    - Use functional and declarative programming patterns; avoid classes.
    - Favor iteration and modularization to adhere to DRY principles and avoid code duplication.
    - Use descriptive variable names with auxiliary verbs (e.g., isLoading, hasError).
    - Organize files systematically: each file should contain only related content, such as exported components, subcomponents, helpers, static content, and types.

    Naming Conventions
    - Use lowercase with dashes for directories (e.g., components/auth-wizard).
    - Favor named exports for functions.

    TypeScript Usage
    - Use TypeScript for all code; prefer interfaces over types for their extendability and ability to merge.
    - Avoid enums; use maps instead for better type safety and flexibility.
    - Use functional components with TypeScript interfaces.

    Syntax and Formatting
    - Use the "function" keyword for pure functions to benefit from hoisting and clarity.
    - Always use the Vue Composition API script setup style.

    UI and Styling
    - Use Element Plus, and Sass for components and styling.
    - Implement responsive design with Sass;  use a mobile-first approach.

    Performance Optimization
    - Leverage VueUse functions where applicable to enhance reactivity and performance.
    - Wrap asynchronous components in Suspense with a fallback UI.
    - Use dynamic loading for non-critical components.
    - Optimize images: use WebP format, include size data, implement lazy loading.
    - Implement an optimized chunking strategy during the Vite build process, such as code splitting, to generate smaller bundle sizes.

    Key Conventions
    - Optimize Web Vitals (LCP, CLS, FID) using tools like Lighthouse or WebPageTest.

在这里插入图片描述
2、添加docs

Figma file 帮助cursor了解figma设计稿文件 - https://www.figma.com/developers/api#files
bem 提供class name命名规则 - https://juejin.cn/post/7405834903370154022、https://bemcss.com/#

3、添加figma link

拷贝需要实现的页面link

4、添加截图

上传需要实现的页面截图

5、添加prompts

从提供的Figma设计稿中获取页面视觉布局的信息，然后参考Figma字段说明文档链接理解布局信息里面的字段含义，参考视觉截图理解页面框架，最后将理解的布局信息内容还原成vue页面，与Figma设计中的视觉效果保持一致。要求：1.生成vue页面，代码存放在src/views目录。2.从Figma导出的图片格式采用png格式，并且以.png格式为扩展名，例如icon-xxx.png，不要使用svg格式，图片命名中不能带中文等非法字符。图片以3倍大小导出，导出的图片存放新建项目目录的src/assets/images目录下。3.处理好页面元素间距。4.可以给出调用示例，不用添加调用示例入口。5.尽可能在原有代码风格基础上做新的代码开发。6.css class遵循bem，style 遵循sass嵌套
