前言

本方案接入了最新开源的Qwen3-235B-A22B模型，在以往的MCP文章中，我们介绍了MCP的概念原理，今天这篇文章将结合实际场景，从用户角度出发，思考MCP在未来AI场景中更深度的用途和作用。去探索MCP的能做什么，以及MCP的能力范围是什么。

本文中，将使用通义千问大语言模型通过MCP的多个Servers和部署在阿里云自研GPU集群上的ComfyUI Server进行交互，实现打破AI云服务的数据孤岛的诉求。

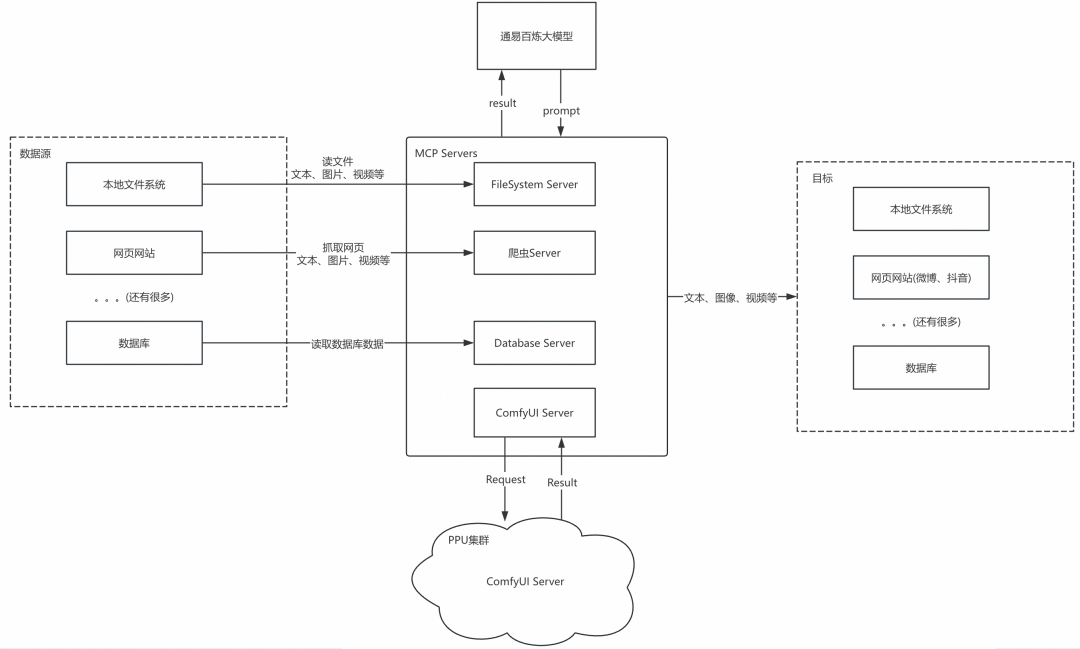

最终能够做到通过大模型让ComfyUI服务获取本地、网络、数据库等数据源的数据，让ComfyUI生产的图像、视频传输到本地、云上存储、数据库，甚至是自动发布到微博、抖音、小红书、微信公众号等媒体社交平台，方案架构如下：

通过上面的方案架构图可以看到，通过MCP可以很便捷的接入多个MCP Server让大模型调度、协作，相比多Agent的方案，可扩展性、易用性都很高。

实践方案

场景介绍

从本地存储prompt的文件中读取内容，然后将prompt内容转换成图片，再将生成的图片下载到本地的images文件夹中。最后再将这些图片配合描述生成小红书文案，发布到小红书中。

MCP Server
- FileSystem(现有可用)
- 小红书(个人开发部署)
- ComfyUI(个人开发部署)
大模型
- Qwen3-235B-A22B
prompt内容

一只小狗在草地上奔跑一群小朋友在欢乐的玩耍写实风格的山水画

最终效果

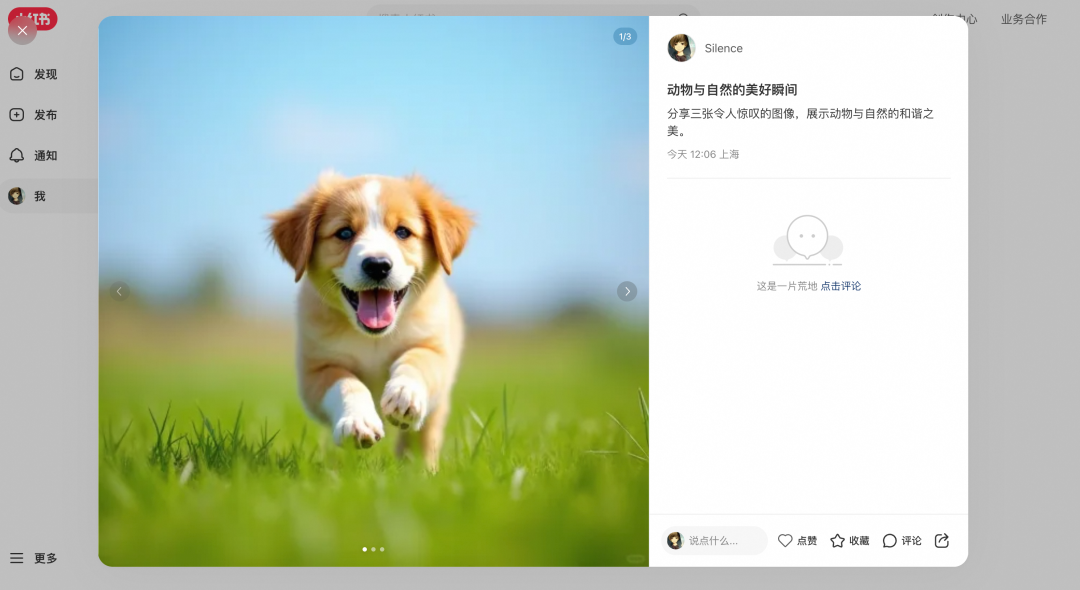

笔记最终成功发布到小红书中

环境准备

Python

Python 3.10版本及以上

MCP

MCP环境准备参考官方文档https://modelcontextprotocol.io/quickstart/server#set-up-your-environment

ComfyUI

服务可以部署在本地，也可以是云端。具体安装部署请参考官方文档https://github.com/comfyanonymous/ComfyUI

实践部署

通义Qwen3接入

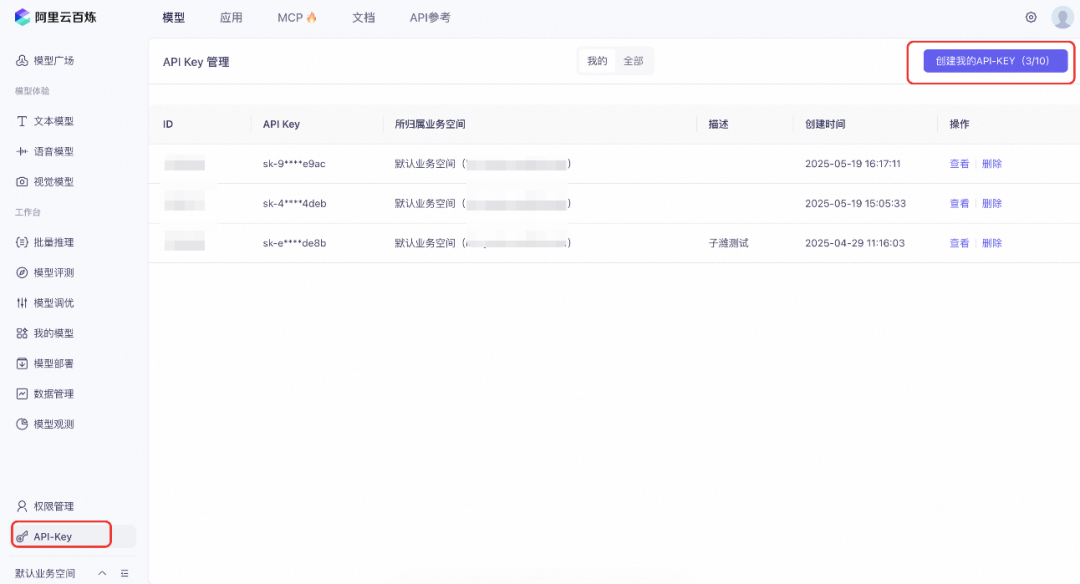

前往百炼申请AccessKey [1]

VSCode + CLine

\1. VSCode安装CLine插件

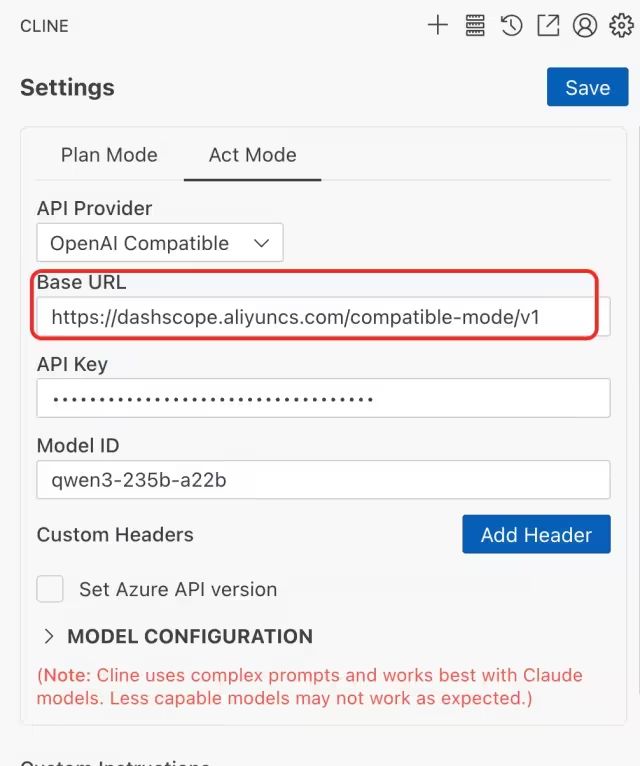

\2. CLine接入Qwen3接口

选择“OpenAI Compatible”
Base URL添加：https://dashscope.aliyuncs.com/compatible-mode/v1
Model ID: qwen3-235b-a22b

MCP Server

FileSytem

参考百炼MCP Filesystem Server[2]

Filesystem MCP Server 功能概述

安全的终端命令执行：允许在受控环境中运行命令而不影响系统的安全性。
目录导航：支持对目录结构的查询和浏览。
文件系统操作：包括创建、读取、更新和删除文件等基本文件操作功能。

ComfyUI MCP Server

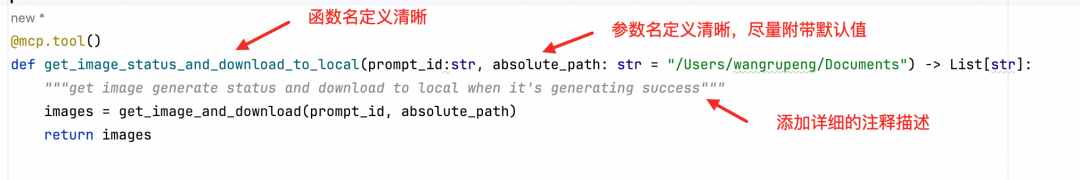

代码

\1. 本server实现代码中，使用了固定的workflow，可以按需替换成自己需要的workflow；

\2. 只针对文生图场景的实现，其他场景可以按需自己添加mcp server tool；

import urllibimport uuidfrom typing import Dict, Any, Listimport httpximport loggingimport websocketsfrom PIL import Imageimport iofrom fastmcp import FastMCPfrom fastmcp.prompts import UserMessageimport jsonfrom time import sleep# Configure logginglogging.basicConfig(level=logging.INFO)logger = logging.getLogger("comfy-image-mcp-server")COMFY_SERVER = "8.147.113.150:8000"CLIENT_ID = str(uuid.uuid4())# Create a basic server instancemcp = FastMCP(name="CompyImageServer")# You can also add instructions for how to interact with the servermcp_with_instructions = FastMCP(    name="HelpfulAssistant",    instructions="这个服务是用来通过comfyui生成图片的."                 "调用generate_image_async()来异步地生成需要的图片.")def queue_prompt(prompt: Dict[str, Any] = None) -> Dict[str, Any]:    url = f"http://{COMFY_SERVER}/api/prompt"    json = {        "prompt": prompt,        "client_id": CLIENT_ID    }    try:        response = httpx.post(url=url, json=json, verify=False, trust_env=False, timeout=60.0)        if response.status_code != 200:            raise RuntimeError(f"Failed to queue prompt: {response.status_code} - {response.text}")        return response.json()    except httpx.RequestError as e:        # logger.info(traceback.format_exc())        raise RuntimeError(f"HTTP request failed: {e}")async def download_image(prompt_id: str) -> bytes:    uri = f"ws://{COMFY_SERVER}/ws?clientId={CLIENT_ID}"    logger.info(f"Connecting to websocket at {uri}")    async with websockets.connect(uri) as websocket:        while True:            try:                message = await websocket.recv()                if isinstance(message, str):                    try:                        data = json.loads(message)                        logger.info(f"Received text message: {data}")                        if data.get("type") == "executing":                            exec_data = data.get("data", {})                            if exec_data.get("prompt_id") == prompt_id:                                node = exec_data.get("node")                                logger.info(f"Processing node: {node}")                                if node is None:                                    logger.info("Generation complete signal received")                                    break                    except:                        pass                else:                    logger.info(f"Received binary message of length: {len(message)}")                    if len(message) > 8:  # Check if we have actual image data                        return message[8:]  # Remove binary header                    else:                        logger.warning(f"Received short binary message: {message}")            except websockets.exceptions.ConnectionClosed as e:                logger.error(f"WebSocket connection closed: {e}")                break            except Exception as e:                logger.error(f"Error processing message: {e}")                continuedef get_image(filename, subfolder, folder_type):    data = {"filename": filename, "subfolder": subfolder, "type": folder_type}    url_values = urllib.parse.urlencode(data)    with urllib.request.urlopen("http://{}/view?{}".format(COMFY_SERVER, url_values)) as response:        return response.read()def get_history(prompt_id):    with urllib.request.urlopen("http://{}/history/{}".format(COMFY_SERVER, prompt_id)) as response:        return json.loads(response.read())def get_image_and_download(prompt_id, path):    output_images = []    while True:        history = get_history(prompt_id)[prompt_id]        if history['status']['status_str'] == 'success':            for node_id in history['outputs']:                node_output = history['outputs'][node_id]                images_output = []                if'images' in node_output:                    for image in node_output['images']:                        image_data = get_image(image['filename'], image['subfolder'], image['type'])                        image_bytes = Image.open(io.BytesIO(image_data))                        file_path = ""                        if path.endswith("/"):                            file_path = path + image['filename']                        else:                            file_path = path + "/" + image['filename']                        image_bytes.save(file_path)                        output_images.append(file_path)                #         images_output.append(image_data)                # output_images[node_id] = images_output                # output_images_names[node_id] =            return output_images        else:            logger.info(f"promot {prompt_id} unfinished meta: {history}")            sleep(1)            continue@mcp.prompt()def generate_image_request(prompt: str, style: str = "动漫风格") -> UserMessage:    """Generates a user message requesting image generation"""    content = f"生成一个comfyui的英文prompt，要求包含下面的内容: {prompt} 并且要求生成的图片需要具有很高的质量，风格是{style}"    return UserMessage(content=content)@mcp.tool()def generate_image_async(prompt: str = "a cat with yellow hat", width=512, height=512,seed=4787458) -> Dict[str, Any]:    workflow = {        "6": {            "inputs": {                "text": prompt,                "clip": [                    "30",                    1                ]            },            "class_type": "CLIPTextEncode",            "_meta": {                "title": "CLIP Text Encode (Positive Prompt)"            }        },        "8": {            "inputs": {                "samples": [                    "31",                    0                ],                "vae": [                    "30",                    2                ]            },            "class_type": "VAEDecode",            "_meta": {                "title": "VAE解码"            }        },        "9": {            "inputs": {                "filename_prefix": "ComfyUI",                "images": [                    "8",                    0                ]            },            "class_type": "SaveImage",            "_meta": {                "title": "保存图像"            }        },        "27": {            "inputs": {                "width": width,                "height": height,                "batch_size": 1            },            "class_type": "EmptySD3LatentImage",            "_meta": {                "title": "空Latent图像（SD3）"            }        },        "30": {            "inputs": {                "ckpt_name": "flux1-dev-fp8.safetensors"            },            "class_type": "CheckpointLoaderSimple",            "_meta": {                "title": "Checkpoint加载器（简易）"            }        },        "31": {            "inputs": {                "seed": seed,                "steps": 20,                "cfg": 1,                "sampler_name": "euler",                "scheduler": "simple",                "denoise": 1,                "model": [                    "30",                    0                ],                "positive": [                    "35",                    0                ],                "negative": [                    "33",                    0                ],                "latent_image": [                    "27",                    0                ]            },            "class_type": "KSampler",            "_meta": {                "title": "K采样器"            }        },        "33": {            "inputs": {                "text": "",                "clip": [                    "30",                    1                ]            },            "class_type": "CLIPTextEncode",            "_meta": {                "title": "CLIP Text Encode (Negative Prompt)"            }        },        "35": {            "inputs": {                "guidance": 3.5,                "conditioning": [                    "6",                    0                ]            },            "class_type": "FluxGuidance",            "_meta": {                "title": "Flux引导"            }        }    }    return queue_prompt(workflow)@mcp.tool()def get_image_status_and_download_to_local(prompt_id:str, absolute_path: str = "/Users/wangrupeng/Documents/work/files/images") -> List[str]:    """get image generate status and download to local when it's generating success"""    images = get_image_and_download(prompt_id, absolute_path)    return imagesif __name__ == "__main__":    mcp.run(transport="sse",host="127.0.0.1", port=9000)    # create_simple_note()    # print(generate_image_async("a cute girl with red hat standing on the green land"))    # images = download_image_to_local("03e6da53-9779-4af8-b7a9-564f90eeea36")    # print(images)

启动

此处记住端口

fastmcp run server.py:mcp --transport sse --host 127.0.0.1 --port 9000

第三方媒体Server

\1. 参考Github项目 social-auto-upload：https://github.com/dreammis/social-auto-upload，支持抖音、B站、小红书等社交媒体；

\2. 自己实现的server功能比较简单，仅为Demo展示使用；

代码

import jsonimport logging
import httpxfrom fastmcp
import FastMCPfrom time
import sleepfrom playwright.sync_api
import sync_playwrightfrom xhs
import XhsClientcookie = "a1=xxxx;"
XIAOHONGSHU_SERVER = "127.0.0.1:5005"
# social-auto-load服务def sign(uri, data=None, a1="", web_session=""):    for _ in range(10):        try:            with sync_playwright() as playwright:                stealth_js_path = "/Users/wangrupeng/Documents/dev/github/stealth_min/stealth.min.js"                chromium = playwright.chromium                # 如果一直失败可尝试设置成 False 让其打开浏览器，适当添加 sleep 可查看浏览器状态                browser = chromium.launch(headless=True)                browser_context = browser.new_context()                browser_context.add_init_script(path=stealth_js_path)                context_page = browser_context.new_page()                context_page.goto("https://www.xiaohongshu.com")                browser_context.add_cookies([                    {'name': 'a1', 'value': a1, 'domain': ".xiaohongshu.com", 'path': "/"}]                )                context_page.reload()                # 这个地方设置完浏览器 cookie 之后，如果这儿不 sleep 一下签名获取就失败了，如果经常失败请设置长一点试试                sleep(1)                encrypt_params = context_page.evaluate("([url, data]) => window._webmsxyw(url, data)", [uri, data])                return {                    "x-s": encrypt_params["X-s"],                    "x-t": str(encrypt_params["X-t"])                }        except Exception as e:            # 这儿有时会出现 window._webmsxyw is not a function 或未知跳转错误，因此加一个失败重试趴            logger.warning(f"failed : {e}")            pass    raise Exception("重试了这么多次还是无法签名成功")xhs_client = XhsClient(cookie, sign=sign)# Configure logginglogging.basicConfig(level=logging.INFO)logger = logging.getLogger("comfy-image-mcp-server")# Create a basic server instancemcp = FastMCP(name="XiaoHongShuServer")# You can also add instructions for how to interact with the servermcp_with_instructions = FastMCP(    name="HelpfulAssistant",    instructions="这个服务是用来发布管理和查看小红书笔记的")def create_simple_note(title: str, desc: str, images: []) -> str:    note = xhs_client.create_image_note(title, desc, images, is_private=False)    return json.dumps(note, ensure_ascii=False, indent=2)@mcp.tool()def publish_xiaohongshu_note(title: str = "", desc = "a cat", images: [] = [        "/path/to/local/demo.jpg",    ]) -> str:    """publish a xiaohongshu note"""    try:        url = f"http://{XIAOHONGSHU_SERVER}/create"        json = {            "title": title,            "desc": desc,            "images": images}        response = httpx.post(url=url, json=json, verify=False, trust_env=False, timeout=60.0)        return response.json()    except Exception as e:        return f"error {e}"if __name__ == "__main__":    mcp.run(transport="sse",host="127.0.0.1", port=9001)

CLINE配置MCP Server

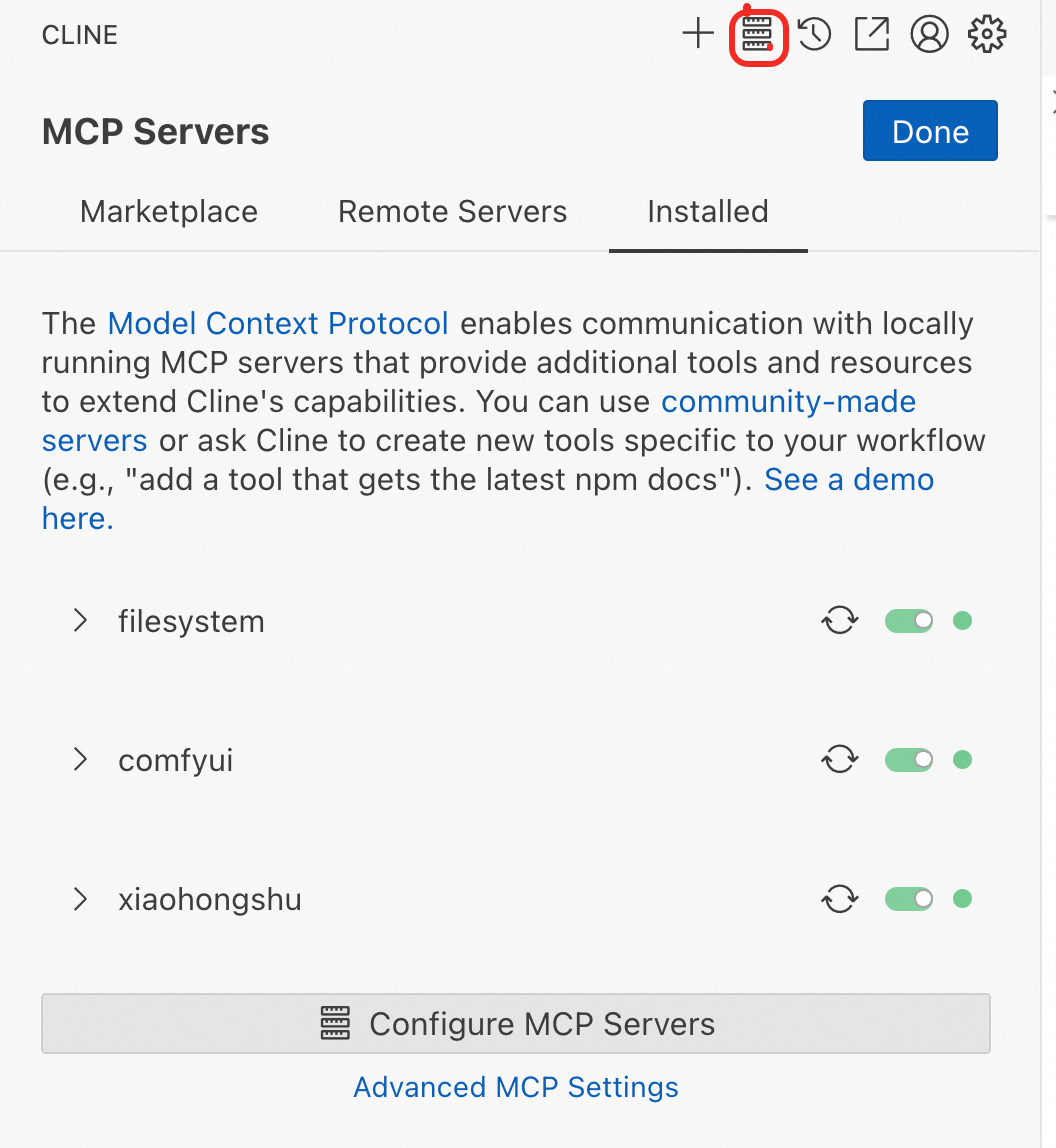

CLINE中右上角点击MCP Servers按钮

更新cline_mcp_settings.json配置文件

{  "mcpServers": {    "filesystem": {      "autoApprove": [        "read_file",        "list_allowed_directories",        "read_multiple_files",        "create_directory",        "list_directory",        "directory_tree",        "search_files",        "get_file_info"      ],      "disabled": false,      "timeout": 60,      "command": "npx",      "args": [        "-y",        "@modelcontextprotocol/server-filesystem",        "/Users/wangrupeng/Documents/Cline/MCP/filesystem-server"      ],      "transportType": "stdio"    },    "comfyui": {      "autoApprove": [        "generate_image_async",        "get_image_status",        "get_image_status_and_download_to_local"      ],      "disabled": false,      "timeout": 60,      "url": "http://127.0.0.1:9001/sse",      "transportType": "sse"    },    "xiaohongshu": {      "disabled": false,      "timeout": 60,      "url": "http://127.0.0.1:9002/sse",      "transportType": "sse",      "autoApprove": [        "publish_xiaohongshu_note"      ]    }  }}
