【回归任务】新冠感染人数预测

新冠感染人数预测模型，基础回归任务

2301_77921939

1194人浏览 · 2025-04-09 20:41:06

2301_77921939 · 2025-04-09 20:41:06 发布

数据来源：ML2021Spring-hw1 | Kaggle

1.数据预处理类

# 数据集中“州”以"独热编码"形式呈现
import matplotlib.pyplot as plt
import torch
import numpy as np
import csv
import pandas as pd
from torch.utils.data import DataLoader, Dataset
# Dataset类，需要提供file; 提供的函数:init吃file path, getitem取数据,根据下标给X，Y, len求长度
# DataLoader函数，分批次取数据集
import torch.nn as nn
# nn.Module类下定义了init和forward函数
from torch import optim  # 优化器
import time


# 1.数据预处理
class CovidDataset(Dataset):
    def __init__(self, file_path, mode="train"):
        with open(file_path, "r") as f:
            ori_data = list(csv.reader(f))  # 将Exel表转为list列表，此时的数据皆是“字符串”形式
            csv_data = np.array(ori_data[1:])[:, 1:].astype(float)  # 将上述列表转矩阵且去第一行第一列 .astype(float)转为浮点型
        # 取数据集下标：
        if mode == "train":  # 逢5取1
            indices = [i for i in range(len(csv_data)) if i % 5 != 0]
            data = torch.tensor(csv_data[indices, :-1])
            self.y = torch.tensor(csv_data[indices, -1])
        elif mode == "val":  # 验证集
            indices = [i for i in range(len(csv_data)) if i % 5 == 0]
            data = torch.tensor(csv_data[indices, :-1])
            self.y = torch.tensor(csv_data[indices, -1])
        else:  # 测试集
            indices = [i for i in range(len(csv_data))]
            data = torch.tensor(csv_data[indices])
            # 测试集无label
        self.mode = mode
        self.data = (data - data.mean(dim=0, keepdim=True)) / data.std(dim=0, keepdim=True)  # 归一化处理，keepdim表示维持原张量维度

    def __getitem__(self, idx):
        if self.mode != "test":
            return self.data[idx].float(), self.y[idx].float()  # .float()改为32位
        else:
            return self.data[idx].float()

    def __len__(self):
        return len(self.data)

上述类实现读取原数据文件，转换数据形式，对数据进行归一化处理，且将两个文件的数据分为“训练集”、“验证集”、“测试集”三部分。

train_file = "covid.train.csv"
test_file = "covid.test.csv"

# file = pd.read_csv(train_file)
# print(file.head())


# 调用数据预处理类
train_dataset = CovidDataset(train_file, "train")  # 返回训练集的X和Y
val_dataset = CovidDataset(train_file, "val")
test_dataset = CovidDataset(test_file, "test")

# for data in train_dataset:
#     print(data)  # data为93列的X和最后的label即Y

# 将数据分为多批次，每轮分批次训练
batch_size = 16
train_loader = DataLoader(train_dataset, batch_size, shuffle=True)  # 将训练集数据分组
val_loader = DataLoader(val_dataset, batch_size, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=1, shuffle=False)

2.训练模型

class MyModel(nn.Module):
    def __init__(self, inDim):
        super().__init__()
        self.fc1 = nn.Linear(inDim, 64)
        self.relu1 = nn.ReLU()
        self.fc2 = nn.Linear(64, 1)

    def forward(self, x):  # 模型前向过程
        x = self.fc1(x)
        x = self.relu1(x)
        x = self.fc2(x)

        if len(x.size()) > 1:  # 由于数据集batch_x是二维，batch_y是一维，所以forward出来的预测值是二维的，需要压缩为一维
            return x.squeeze(1)
        return x

本次回归任务的训练模型为两个全连接层和一个Relu激活函数相结合，可自行调整修改优化。

3.训练函数

def train_val(train_loader, val_loader, device, model, loss, optimizer, epochs, save_path):
    model = model.to(device)

    plt_train_loss = []  # 训练过程的loss值,取每批次的均值
    plt_val_loss = []  # 验证
    min_val_loss = 9999999999999  # 最优loss值

    for epoch in range(epochs):  # 训练号角
        train_loss = 0.0
        val_loss = 0.0
        start_time = time.time()

        model.train()  # 模型调为训练模式
        for batch_x, batch_y in train_loader:
            x, target = batch_x.to(device), batch_y.to(device)
            pred = model(x)  # 训练得到pred_y
            train_bat_loss = loss(pred, target)  # 根据pred_y和y计算loss
            train_loss += train_bat_loss.cpu().item()  # 每次训练中，数据集分批次，每次训练总loss的值即为各批次loss总和
            train_bat_loss.backward()  # 对loss梯度回传
            optimizer.step()  # 更新模型参数
            optimizer.zero_grad()  # grad置零
            # 由于batch_x.to(device), batch_y.to(device)操作导致数据集可能是在gpu上的，故train_bat_loss.cpu()也可能在gpu上，需取下放到cpu上后才允许取值

        plt_train_loss.append(train_loss / train_loader.__len__())  # 计算train的平均loss

        # 上述的train训练结束后已得到本次训练结束的最优参数（权重和偏置），下面根据该组参数值对验证集进行验证查看loss
        model.eval()  # 模型调为验证模式
        with torch.no_grad():  # 验证过程不需要梯度回传，无需追踪grad
            for batch_x, batch_y in val_loader:
                x, target = batch_x.to(device), batch_y.to(device)
                pred = model(x)
                val_bat_loss = loss(pred, target)
                val_loss += val_bat_loss.cpu().item()

        plt_val_loss.append(val_loss / val_loader.__len__())

        # 一轮训练结束，对更优的loss表现保存其model
        if val_loss < min_val_loss:
            torch.save(model, save_path)
            min_val_loss = val_loss

        # 打印这轮的训练结果
        print("[%03d/%03d]  %2.2fsec(s)  Train_loss: %.6f | Val_loss: %.6f" % \
              (epoch, epochs, time.time() - start_time, plt_train_loss[-1], plt_val_loss[-1]))
    # for

    # epochs轮训练全部结束，可视化操作一手
    plt.plot(plt_train_loss)
    plt.plot(plt_val_loss)
    plt.title("Loos图")
    plt.legend(["train", "val"])
    plt.show()

将真正的训练过程封装为上述函数。
训练模式中使用“2.训练模型”获取预估值，根据loss和梯度回传不断优化模型内参数，且保存训练过程的loss值。
验证模式无需梯度回传，设置为验证模式以保证模型验证过程的数据完整性，记录验证过程的模型loss值。
最后将整个训练过程和验证过程的loss值进行可视化展现。

训练过程使用MSE为损失函数，通过SGD优化参数，训练过程超参数设置如下：

# 超参数设置：
device = "cuda" if torch.cuda.is_available() else "cpu"
print(device)
config = {
    "lr": 0.001,
    "epochs": 20,
    "momentum": 0.9,  # 动量
    "save_path": "model_save/best_model.pth",
    "rel_path": "model_save/pred.csv"
}

model = MyModel(inDim=93).to(device)
loss = nn.MSELoss()  # （pred_y - y）^2
optimizer = optim.SGD(model.parameters(), lr=config["lr"], momentum=config["momentum"])  # torch下的SGD优化器调用，momentum为动量

# 开始训练
train_val(train_loader, val_loader, device, model, loss, optimizer, config["epochs"], config["save_path"])

损失函数等可进一步优化，下列给出通过L2正则化优化损失函数，避免模型过拟合等问题。

def mseLoss_with_reg(pred, target, model):
    loss = nn.MSELoss(reduction='mean')
    ''' Calculate loss '''
    regularization_loss = 0                    # 正则项
    for param in model.parameters():
        # TODO: you may implement L1/L2 regularization here
        # 使用L2正则项
        # regularization_loss += torch.sum(abs(param))
        regularization_loss += torch.sum(param ** 2)                  # 计算所有参数平方
    return loss(pred, target) + 0.00075 * regularization_loss             # 返回损失。

4.评估函数

def evaluate(save_path, test_loader, device, rel_path):  # 得出测试结果文件
    model = torch.load(save_path).to(device)
    rel = []
    with torch.no_grad():
        for x in test_loader:
            pred = model(x.to(device))
            rel.append(pred.cpu().item())
    print(rel)
    with open(rel_path, "w", newline='') as f:
        csvWriter = csv.writer(f)
        csvWriter.writerow(["id", "tested_positive"])
        for i, value in enumerate(rel):
            csvWriter.writerow([str(i), str(value)])
    print("文件已经保存到{}", format(rel_path))

通过训练过程保存的最优loss结果模型，对测试文件内数据进行预估结果，注意结果写入文件时的格式。

# 测试
evaluate(config["save_path"], test_loader, device, config["rel_path"])

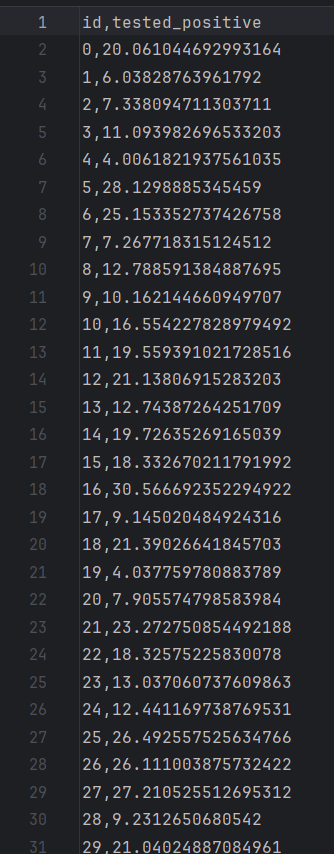

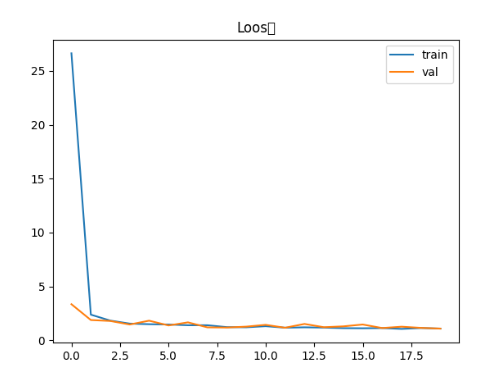

5.部分结果展示

6.完整代码

# 数据集中“州”以"独热编码"形式呈现
import matplotlib.pyplot as plt
import torch
import numpy as np
import csv
import pandas as pd
from torch.utils.data import DataLoader, Dataset
# Dataset类，需要提供file; 提供的函数:init吃file path, getitem取数据,根据下标给X，Y, len求长度
# DataLoader函数，分批次取数据集
import torch.nn as nn
# nn.Module类下定义了init和forward函数
from torch import optim  # 优化器
import time


# 1.数据预处理
class CovidDataset(Dataset):
    def __init__(self, file_path, mode="train"):
        with open(file_path, "r") as f:
            ori_data = list(csv.reader(f))  # 将Exel表转为list列表，此时的数据皆是“字符串”形式
            csv_data = np.array(ori_data[1:])[:, 1:].astype(float)  # 将上述列表转矩阵且去第一行第一列 .astype(float)转为浮点型
        # 取数据集下标：
        if mode == "train":  # 逢5取1
            indices = [i for i in range(len(csv_data)) if i % 5 != 0]
            data = torch.tensor(csv_data[indices, :-1])
            self.y = torch.tensor(csv_data[indices, -1])
        elif mode == "val":  # 验证集
            indices = [i for i in range(len(csv_data)) if i % 5 == 0]
            data = torch.tensor(csv_data[indices, :-1])
            self.y = torch.tensor(csv_data[indices, -1])
        else:  # 测试集
            indices = [i for i in range(len(csv_data))]
            data = torch.tensor(csv_data[indices])
            # 测试集无label
        self.mode = mode
        self.data = (data - data.mean(dim=0, keepdim=True)) / data.std(dim=0, keepdim=True)  # 归一化处理，keepdim表示维持原张量维度

    def __getitem__(self, idx):
        if self.mode != "test":
            return self.data[idx].float(), self.y[idx].float()  # .float()改为32位
        else:
            return self.data[idx].float()

    def __len__(self):
        return len(self.data)


# 2.训练模型
class MyModel(nn.Module):
    def __init__(self, inDim):
        super().__init__()
        self.fc1 = nn.Linear(inDim, 64)
        self.relu1 = nn.ReLU()
        self.fc2 = nn.Linear(64, 1)

    def forward(self, x):  # 模型前向过程
        x = self.fc1(x)
        x = self.relu1(x)
        x = self.fc2(x)

        if len(x.size()) > 1:  # 由于数据集batch_x是二维，batch_y是一维，所以forward出来的预测值是二维的，需要压缩为一维
            return x.squeeze(1)
        return x


# 3.训练函数
def train_val(train_loader, val_loader, device, model, loss, optimizer, epochs, save_path):
    model = model.to(device)

    plt_train_loss = []  # 训练过程的loss值,取每批次的均值
    plt_val_loss = []  # 验证
    min_val_loss = 9999999999999  # 最优loss值

    for epoch in range(epochs):  # 训练号角
        train_loss = 0.0
        val_loss = 0.0
        start_time = time.time()

        model.train()  # 模型调为训练模式
        for batch_x, batch_y in train_loader:
            x, target = batch_x.to(device), batch_y.to(device)
            pred = model(x)  # 训练得到pred_y
            train_bat_loss = loss(pred, target)  # 根据pred_y和y计算loss
            train_loss += train_bat_loss.cpu().item()  # 每次训练中，数据集分批次，每次训练总loss的值即为各批次loss总和
            train_bat_loss.backward()  # 对loss梯度回传
            optimizer.step()  # 更新模型参数
            optimizer.zero_grad()  # grad置零
            # 由于batch_x.to(device), batch_y.to(device)操作导致数据集可能是在gpu上的，故train_bat_loss.cpu()也可能在gpu上，需取下放到cpu上后才允许取值

        plt_train_loss.append(train_loss / train_loader.__len__())  # 计算train的平均loss

        # 上述的train训练结束后已得到本次训练结束的最优参数（权重和偏置），下面根据该组参数值对验证集进行验证查看loss
        model.eval()  # 模型调为验证模式
        with torch.no_grad():  # 验证过程不需要梯度回传，无需追踪grad
            for batch_x, batch_y in val_loader:
                x, target = batch_x.to(device), batch_y.to(device)
                pred = model(x)
                val_bat_loss = loss(pred, target)
                val_loss += val_bat_loss.cpu().item()

        plt_val_loss.append(val_loss / val_loader.__len__())

        # 一轮训练结束，对更优的loss表现保存其model
        if val_loss < min_val_loss:
            torch.save(model, save_path)
            min_val_loss = val_loss

        # 打印这轮的训练结果
        print("[%03d/%03d]  %2.2fsec(s)  Train_loss: %.6f | Val_loss: %.6f" % \
              (epoch, epochs, time.time() - start_time, plt_train_loss[-1], plt_val_loss[-1]))
    # for

    # epochs轮训练全部结束，可视化操作一手
    plt.plot(plt_train_loss)
    plt.plot(plt_val_loss)
    plt.title("Loos图")
    plt.legend(["train", "val"])
    plt.show()


# 4.评估函数
def evaluate(save_path, test_loader, device, rel_path):  # 得出测试结果文件
    model = torch.load(save_path).to(device)
    rel = []
    with torch.no_grad():
        for x in test_loader:
            pred = model(x.to(device))
            rel.append(pred.cpu().item())
    print(rel)
    with open(rel_path, "w", newline='') as f:
        csvWriter = csv.writer(f)
        csvWriter.writerow(["id", "tested_positive"])
        for i, value in enumerate(rel):
            csvWriter.writerow([str(i), str(value)])
    print("文件已经保存到{}", format(rel_path))


# def mseLoss_with_reg(pred, target, model):
#     loss = nn.MSELoss(reduction='mean')
#     ''' Calculate loss '''
#     regularization_loss = 0                    # 正则项
#     for param in model.parameters():
#         # TODO: you may implement L1/L2 regularization here
#         # 使用L2正则项
#         # regularization_loss += torch.sum(abs(param))
#         regularization_loss += torch.sum(param ** 2)                  # 计算所有参数平方
#     return loss(pred, target) + 0.00075 * regularization_loss             # 返回损失。



train_file = "covid.train.csv"
test_file = "covid.test.csv"

# file = pd.read_csv(train_file)
# print(file.head())

train_dataset = CovidDataset(train_file, "train")  # 返回训练集的X和Y
val_dataset = CovidDataset(train_file, "val")
test_dataset = CovidDataset(test_file, "test")

# for data in train_dataset:
#     print(data)  # data为93列的X和最后的label即Y

# 随机梯度下降：在数据集里面每次随机取一批进行梯度下降更新权重和偏置
batch_size = 16
train_loader = DataLoader(train_dataset, batch_size, shuffle=True)  # 将训练集数据分组，shuffle打乱数据
val_loader = DataLoader(val_dataset, batch_size, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=1, shuffle=False)

# for batch_x, batch_y in train_loader:
#     print(batch_x, "\n", batch_y)
#     model = MyModel(inDim=93)
#     pred_y = model(batch_x)  # nn.Module，一旦模型后跟（）内有参数，直接进入forward函数

# 超参数设置：
device = "cuda" if torch.cuda.is_available() else "cpu"
print(device)
config = {
    "lr": 0.001,
    "epochs": 20,
    "momentum": 0.9,  # 动量
    "save_path": "model_save/best_model.pth",
    "rel_path": "model_save/pred.csv"
}

model = MyModel(inDim=93).to(device)
loss = nn.MSELoss()  # （pred_y - y）^2
optimizer = optim.SGD(model.parameters(), lr=config["lr"], momentum=config["momentum"])  # torch下的SGD优化器调用，momentum为动量

# 开始训练
train_val(train_loader, val_loader, device, model, loss, optimizer, config["epochs"], config["save_path"])

# 测试
evaluate(config["save_path"], test_loader, device, config["rel_path"])

7.小白学习巩固

7.1 from torch.utils.data import DataLoader, Dataset
Dataset类，需要提供file; 提供的函数:init吃file path, getitem取数据,根据下标给X，Y, 和len。
DataLoader函数，分批次取数据集，可直接调用。

7.2 import torch.nn as nn
nn.Module类下定义了init和forward函数，如class MyModel(nn.Module)这样进行直接继承使用，编写好训练模型后，给数据直接调用即可，自动进入forward函数进行训练。

7.3 读取文件过程，数据格式转换
    with open(file_path, "r") as f:
    ori_data = list(csv.reader(f))  # 将Exel表转为list列表，此时的数据皆是“字符串”形式
    csv_data = np.array(ori_data[1:])[:, 1:].astype(float)  # .astype(float)转为浮点型

7.4 输出结果保存，赋予文件的写权限，使用writerow进行每行写入
    with open(rel_path, "w", newline='') as f:
    csvWriter = csv.writer(f)
    csvWriter.writerow(["id", "tested_positive"])
    for i, value in enumerate(rel):
        csvWriter.writerow([str(i), str(value)])
